DipTrace 4.0.0.0 โปรแกรมออกแบบวงจรอิเล็กทรอนิกส์ PCB ฟรี

ดาวน์โหลด โปรแกรม DipTrace v4.0.0.0 โปรแกรมออกแบบวงจรอิเล็กทรอนิกส์ PCB ฟรี

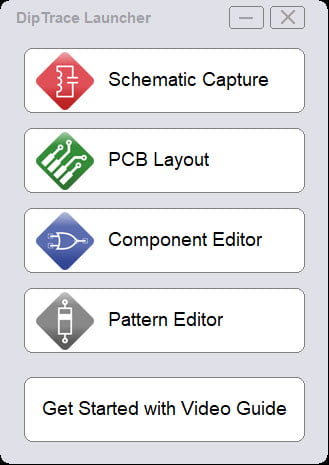

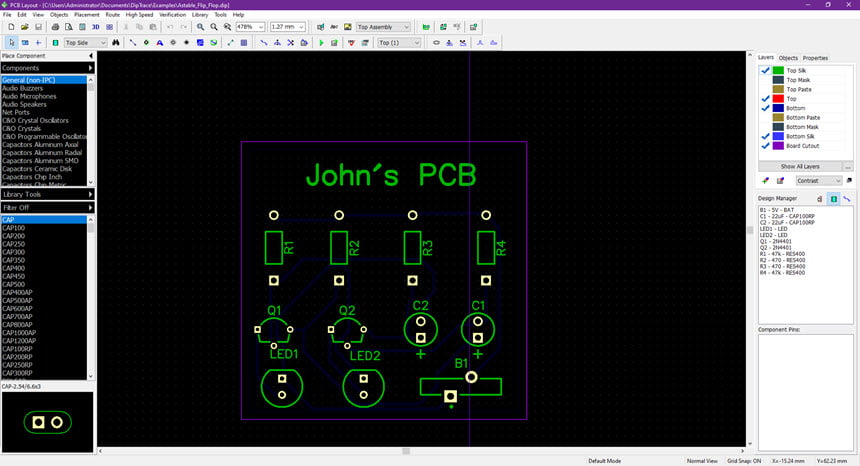

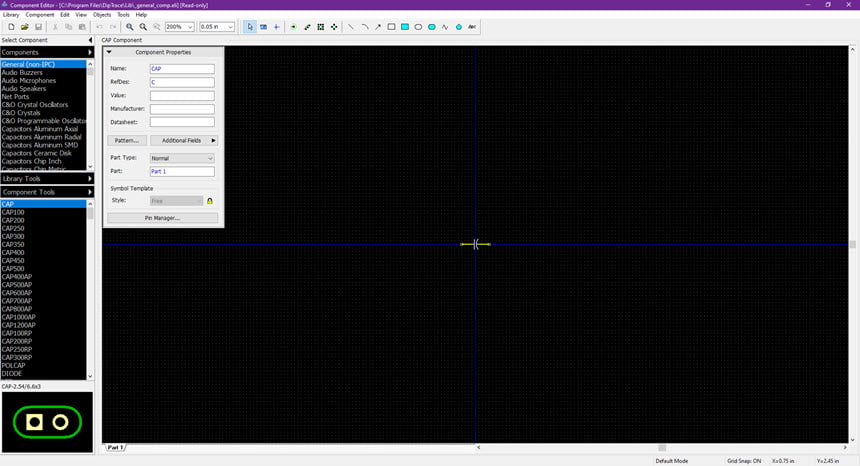

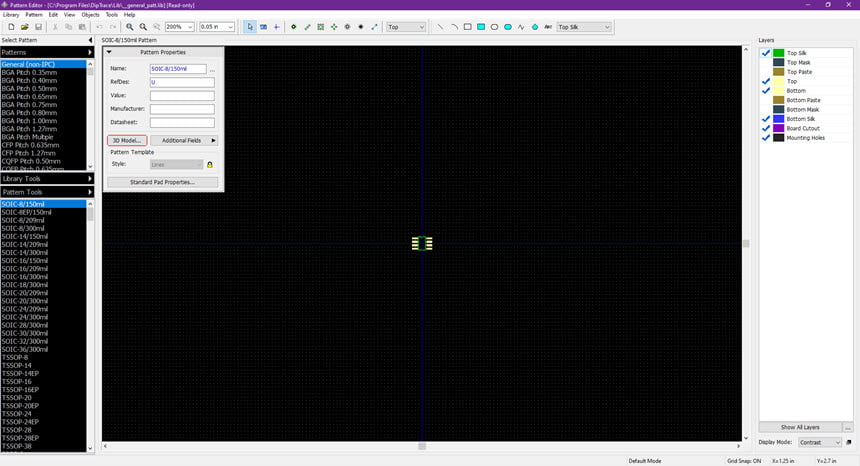

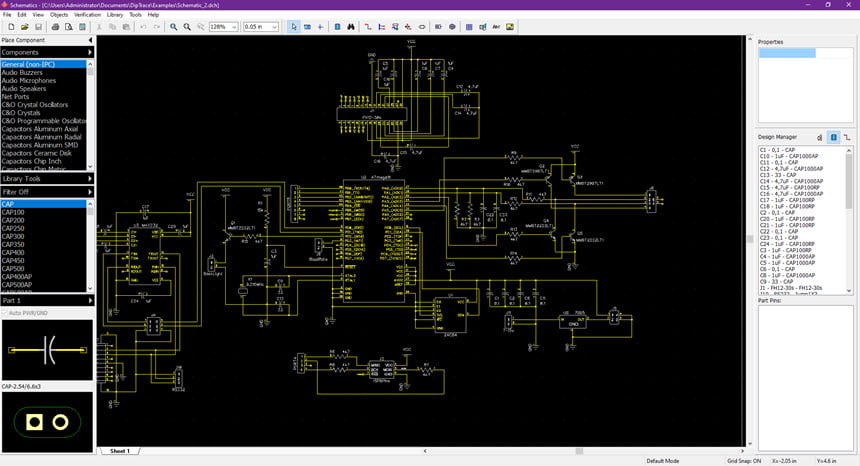

DipTrace เป็นโปรแกรมสำหรับออกแบบวงจรอิเล็กทรอนิกส์ ด้วยสภาพแวดล้อมการออกแบบ EDA / CAD ที่ครอบคลุมสำหรับการสร้างไดอะแกรมแผนผังและวงจรพิมพ์ (PCB) ถือเป็นโซลูชั่นที่ทรงพลังและใช้งานง่ายสำหรับวิศวกรอิเล็กทรอนิกส์ช่วยสร้าง Schematic Diagram และ PCB ทุกประเภท ซอฟต์แวร์นี้มีโมดูล 4 โมดูล ได้แก่ Schematic Capture สำหรับการสร้างแผนผังหลายแผ่นและหลายระดับ, PCB Layout พร้อมเครื่องมือกำหนดเส้นทางที่ใช้งานง่ายขั้นตอนการตรวจสอบขั้นสูงระบบออโตคอลที่มีรูปร่างเป็นรูปร่างตัวอย่างแบบ 3 มิติและเครื่องมือส่งออก, Component Editor สำหรับการสร้างสัญลักษณ์วงจรและ attach patterns และ Pattern Editor สำหรับการสร้างรูปแบบ (รอยเท้า) และแนบโมเดล 3 มิติ.
โปรแกรม DipTrace มีชุดเครื่องมือที่ครอบคลุมพร้อมโหมดการกำหนดเส้นทางเดี่ยวหรือสองเส้นทางการตรวจสอบตามเวลาจริงของกฎคู่ที่แตกต่างกันและผลผลิตการผลิตขั้นสูง ด้วยโปรแกรมนี้คุณสามารถสร้างอะไรก็ได้ตั้งแต่วงจรลอจิกแบบธรรมดาไปจนถึงบอร์ดที่มีความซับซ้อนสูง (ทั้ง plane และรูปแบบ 3 มิติ)
Features:
- Easy to learn User Interface
- Multi-sheet and hierarchical schematics
- Shape-based autorouter
- Smart manual routing tools
- Wide import/export capabilities
- High-speed signaling
- Advanced verifications and Real-time DRC
- Real-time 3D PCB preview & STEP export
- Manufacturing output
- Commitment to the future
- And more.
What’s new in DipTrace 4:
- Automatic or manual paired pads
- New differential pair and rules
- Many new components and models
- Real-time control of tolerance
- Single-track routing and editing
- Speed and memory optimization
- Tree view of 3D models in list
- And many more.
Screenshot
System Requirements Windows XP/ Vista/ 7/ 8/ 8.1/ 10 (32-bit or 64-bit – all editions)
CPU : 2+ GHz multi-core processor or Better
RAM : 1 GB +
HDD : 1 GB +
Display : 1024 x 768 pixels or Higher
GPU : DirectX 9
File Information HomePage : diptrace.com
License : Trial
Software Version : 4.0.0.0 File Name : DT.v4.0.0.x86x64.rar File Size : 378 MB File Type : *.rar Server : Google Drive Upload date : 25/05/2020 Last modified : 25/05/2020 Password : sbz
